New Ways of Reducing Energy Use
Having successfully adopted many major energy-saving technologies and practices, the challenge is always to identify new ways of reducing energy use, so that progress in cutting emissions can be maintained and the company’s stretching targets achieved.
A potentially promising area identified was to harness the ability of Resource Data Management (RDM) control systems to optimise suction pressure on the many hundreds of refrigeration packs operating in the retailer’s stores across the country.
Suction pressure optimisation involves allowing RDM pack controllers to offset the target suction pressure in response to fluctuations in cooling load. This more closely aligns the performance of the refrigeration system to actual demand, improving efficiency without sacrificing the performance of store systems.
To take full advantage of the energy saving opportunity, the retailer simply had to apply software updates. Additionally, refrigeration plant equipment was to be re-commissioned across its whole estate, to ensure an excellent base condition of the equipment.
Performance and Quality Requirements Had to be Met
The work focused on HFC refrigerant-based systems, as CO2-based cascade systems inherently allow suction pressure to float in response to cooling demand.
In addition to working with RDM, M&S collaborated with specialist energy consultants. A key focus was on trials to establish the most effective configuration for optimising plant equipment, to ensure that all performance and quality requirements continued to be met.
Multiple regression analysis was carried out to precisely determine the savings that could be attributed to the initiative. The analysis was verified by specialists at Reading University statistical services centre, who authenticated the results.
Abbey Design Associates re-commissioned and configured the RDM pack controls and Data Manager front end systems across the retailer’s estate. RDM remotely upgraded all pack controller software to the latest versions, to ensure optimisation was as effective as possible.
AB Group carried out site-by-site, system-by-system investigation and improvement works, to maximise the savings. Using RDM’s latest monitoring systems, the retailer was able to identify systems that were under-performing. AB Group then visited the stores identified, to locate the problematic equipment and resolve issues
RDM created bespoke reports which enabled M&S to identify where further work was needed in order to optimise store equipment. Work could be as minor as replacing a faulty probe, through to a more complex plant-wide issue requiring more detailed investigation.
All work carried out was logged and reported back to M&S’s facility management teams, ensuring that learnings were carried forward and integrated into the company’s maintenance programme.
Precise Temperature Control for EV Battery Test Chambers
Highly customised PLC software and precision controls delivered a change from -40°C to +60°C within 30 minutes for new EV battery test chambers.
International Cooperation Delivers Timely Cold Storage Expansion
International cold storage expansion project defies lockdown challenges to deliver precise temperature and humidity control in time for the harvest.

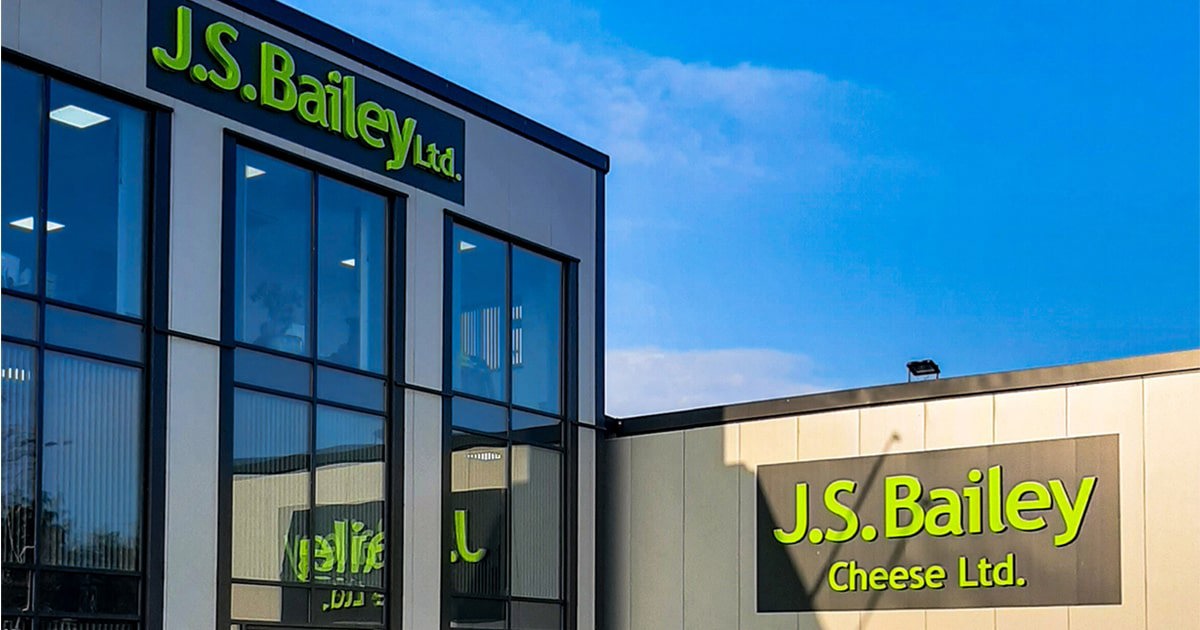

HT Cold Storage Expansion for Cheese Manufacturer
